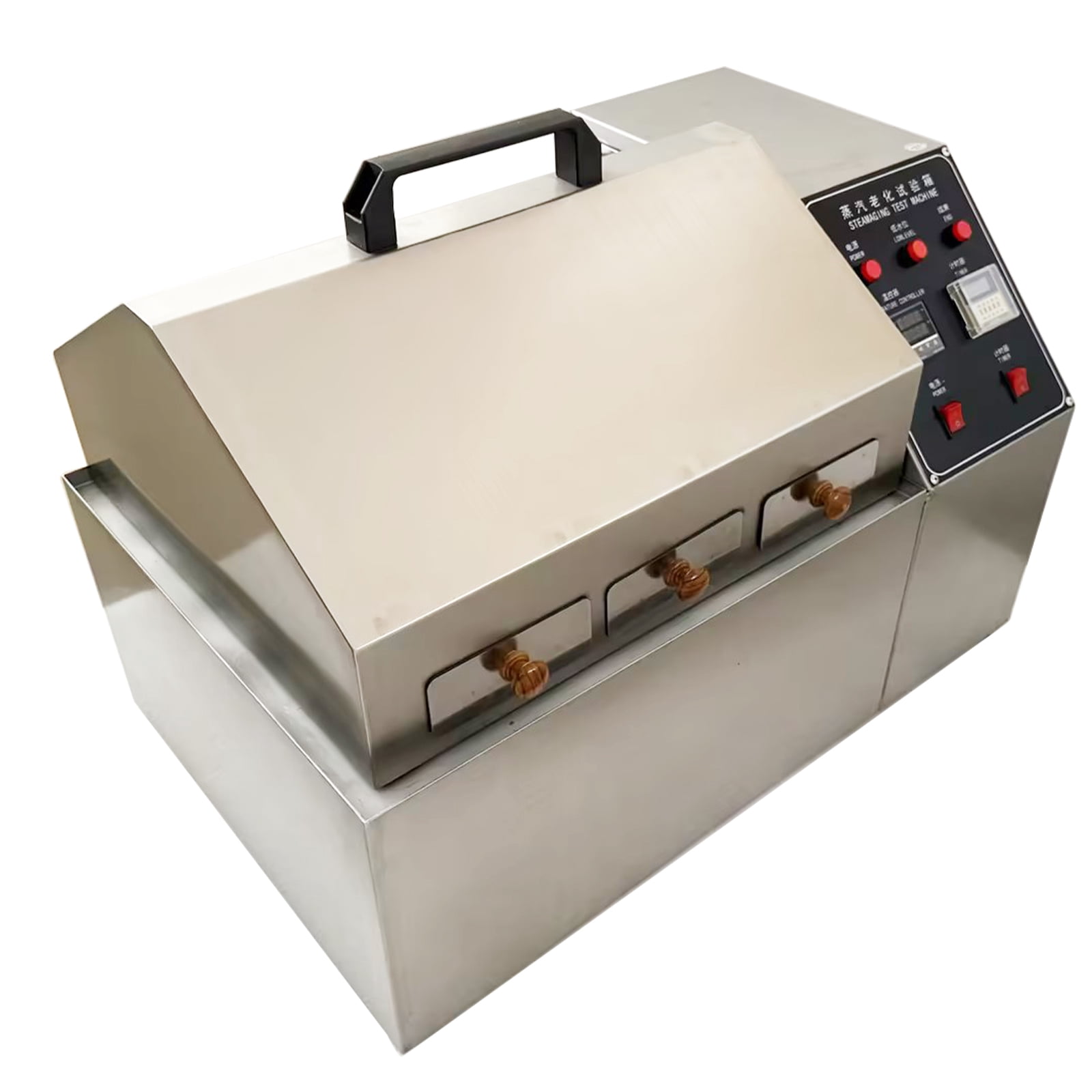

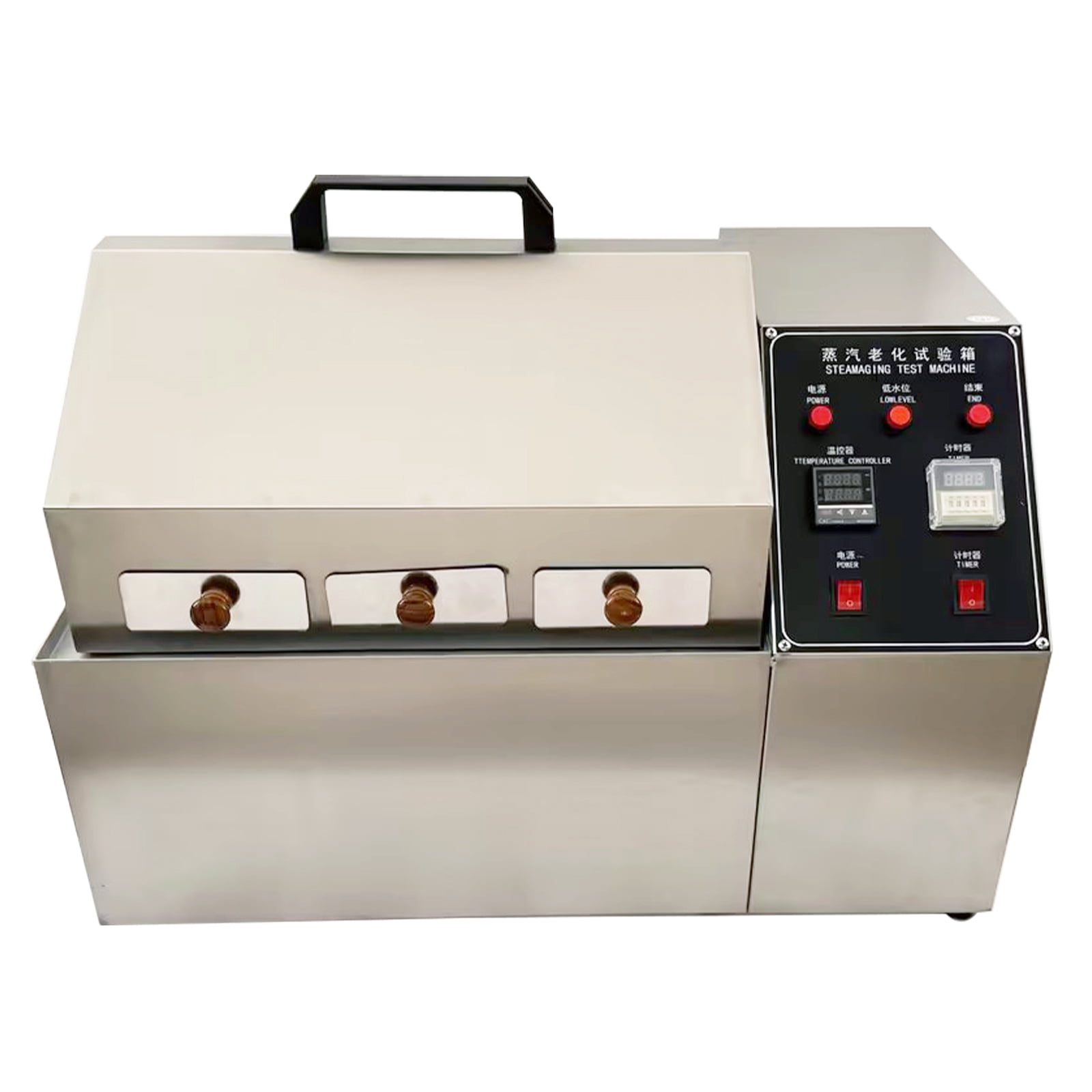

Steam Aging Test Machine Electroplating Element Life Acceleration Simulation Environment Testing Machine 110V

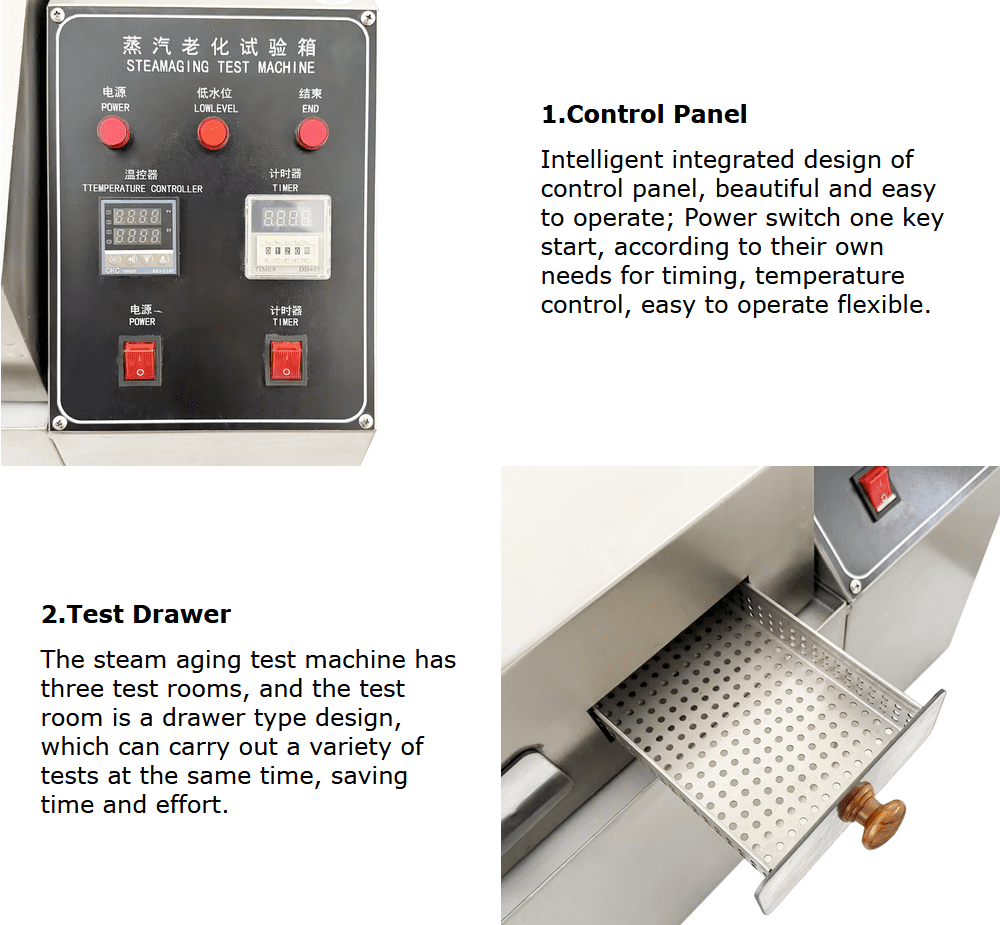

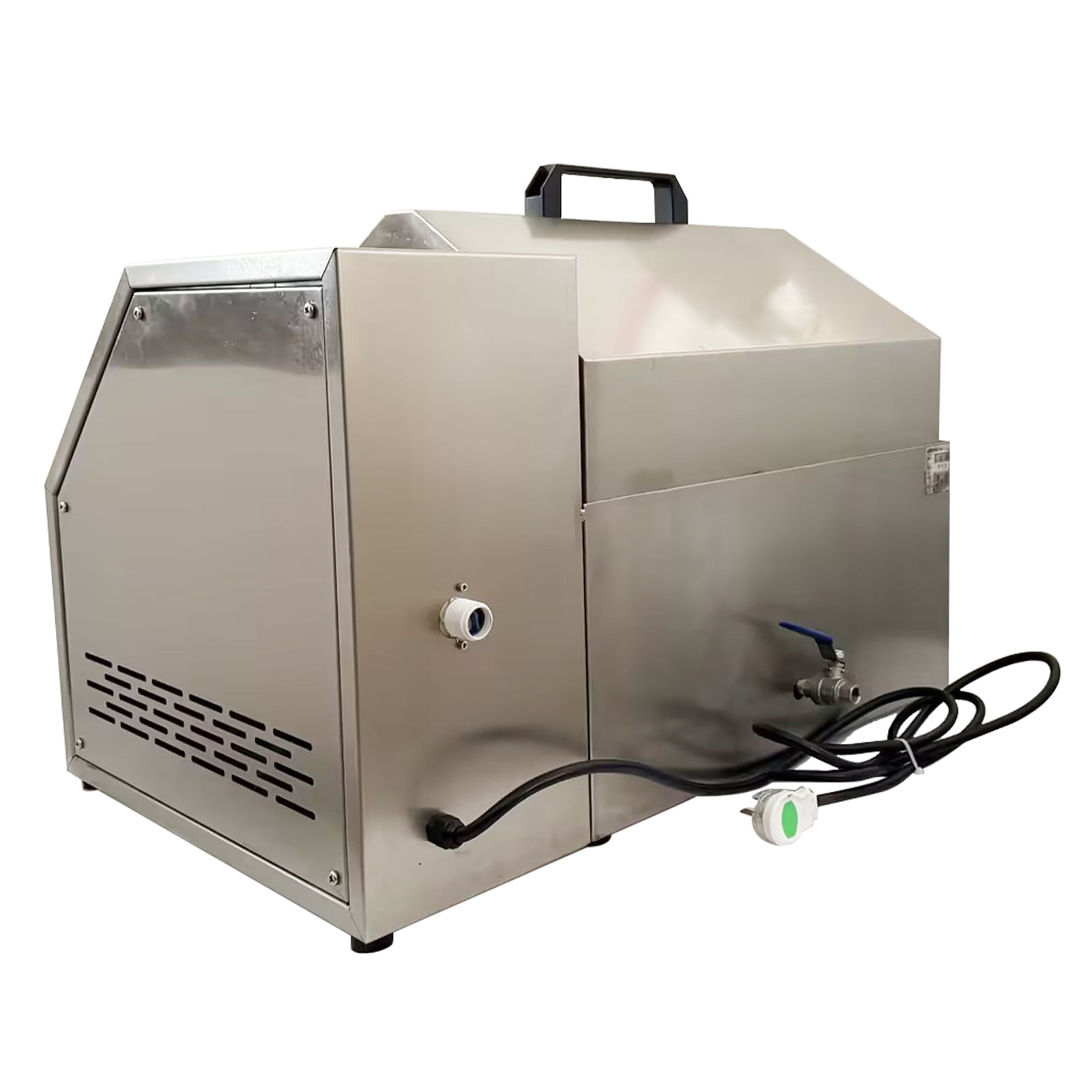

Introduction: <br>Steam aging testing machine is suitable for accelerated aging life time test of electronic connectors, ssemiconductor ICs, transistors, diodes, liquid crystal LCDs, chip resistors and capacitors, and component metal pins before tin-sticking test; Semiconductor, passive components, parts pin oxidation test. Microcomputer temperature controller, LED digital display, PID+SSR control, simple operation, accurate data, stable performance! <br>Before opening the power switch on the machine, please follow these steps: <br>Confirm whether the water inlet at the rear of the machine is connected to the water source. <br>Turn on the POWER switch. <br>Set the experimental temperature and time through the thermostat. <br>Direction for use: <br>After presetting the digital switch and time period switch to the required position and connecting the power supply, the digital display will start timing from zero. When the preset time is reached, the delay contact is converted, and the digital display keeps the current number, realizing the timing control. <br>Reset function and use of disconnection delay: At any time, the reset terminal will be connected to the delayed contact point and will return to the initial position. After disconnection, the digital display will start counting from 0. Using this function, the external control contact can be connected to the reset terminal to achieve disconnection delay. <br>The interval between disconnecting the power supply and reconnecting must be greater than 1 second. <br>Do not control the line with other strong wires in the same pipe or twisted wiring, so as not to produce interference. <br>If you need to turn on the red switch of the panel for the second experiment after the timer time arrives, start it again and set the temperature time next time. <br>Precautions: <br>Before installation, test the access voltage and check whether the power supply is matched. Select the corresponding power supply voltage, do not be too high, avoid burning the device, do not modify the power plug or add the power cord, so as to cause overheating and fire. Do not misconnect, and please fully ground the earth wire to maintain the normal operation and life of the machine. <br>It is advisable to have a separate water supply. After the installation of the water pipe, check whether the joints are firm. <br>It should be powered by a separate switch and cannot share power with other equipment. <br>The exhaust pipe should be installed downward to avoid the internal box pressure imbalance resulting in water overflow outside the box. <br>For thermocouple input signals, please use compensating wires made of the same material as the thermocouple wire. <br>Do not place this machine in a place where there may be liquid splashing, the use environment must be dry, cool and ventilated, please do not close to valuable furniture or other household appliances, and away from inflammable and explosive items. <br>The controller can be opened for cleaning only when the temperature is below 40℃ to avoid scalding. <br>Do not move the machine during use; The instrument must be placed on a stable ground before use, the inclination Angle is less than 5 degrees, and the body is more than 10 cm away from the wall. <br>Do not touch the machine during use and do not tilt it to avoid burns. <br> <br>Parameter: <br>Voltage: AC110V <br>Power: 3000W <br>Timing Function: 1-999 Minutes/Hour <br>Steam Tempuerature: Up to 97℃ <br>Controller: PID+SCR <br>Material of Inner and Outer Boxes: SUS304 High Quality Stainless Steel <br>Insulation Layer: PV Foam <br>Heating Time: About 45 Minutes <br>Control Accuracy: ±0.5℃ <br>Package Size: 33"*23"*27"(84CM*59CM*69CM) <br>Net Weight/Gross Weight: 74LB(33.5KG)/118LB(53.5KG) <br> <br>Items Included: 053181-EnzS <br>110V Steam Aging Test Machine Electroplating Element Life Acceleration Simulation Environment Testing Machine

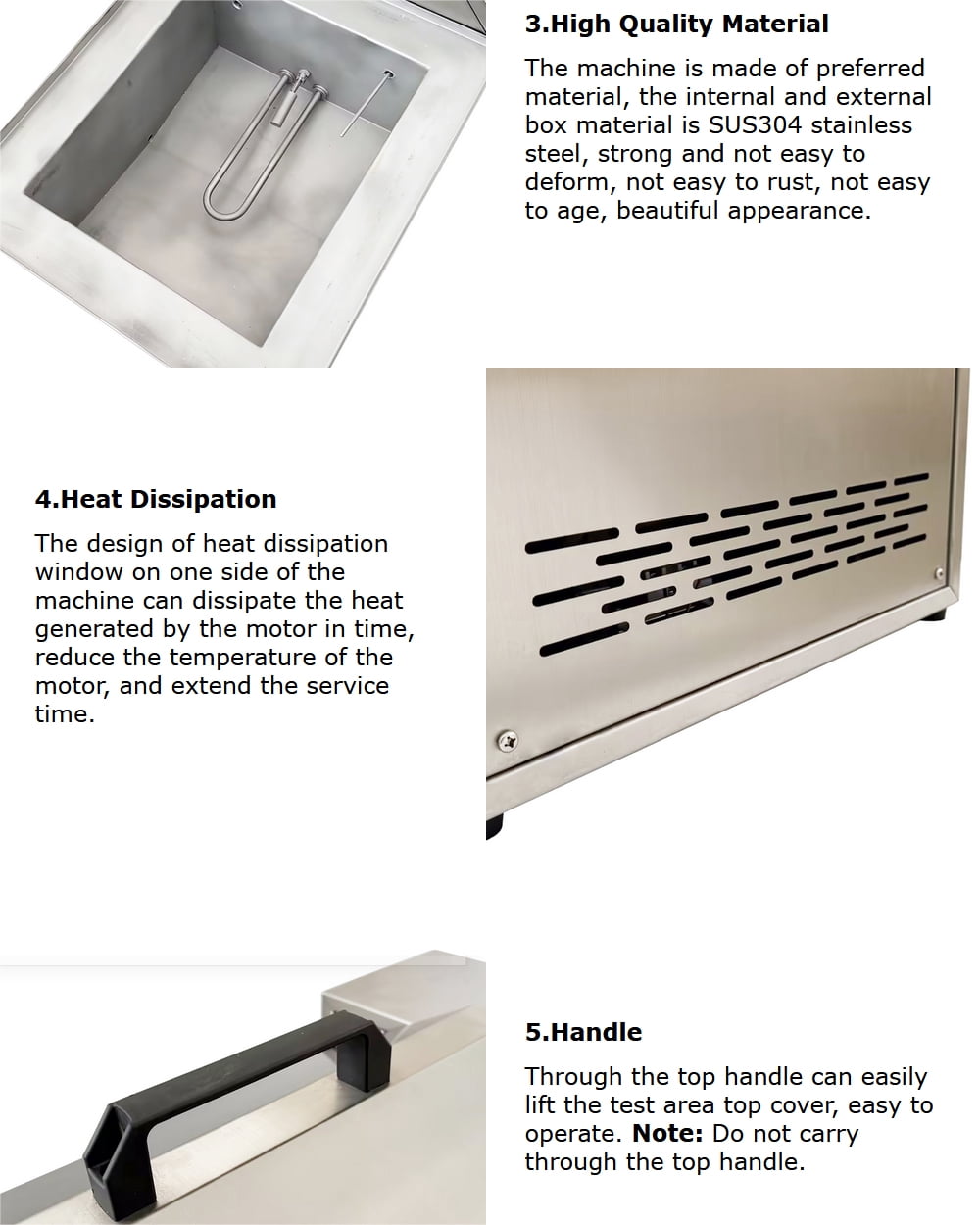

• The inner and outer box are made of SUS304 stainless steel. Beautiful appearance, not easy to age. With a stainless water tank, can manually add water or external water pipe, manual or automatic water supply at low water level, to ensure that the experiment is not interrupted.
• The use of high-quality temperature control system, PID control, SSR output, the temperature is more accurate, high temperature quality is more reliable.
• Timer can be diversified Settings, (can be set seconds/minute - seconds/minute/hour - minute/hour). Equipped with power outage memory function, it can continue working according to the set time after power outage and power restoration.
• The full detection system is used, and the light is on when the fault occurs, which is convenient for the operator to understand the equipment condition in time.
• The heating pipe of the heating system uses titanium tubes. Not easy to corrode, longer service life. High stability platinum probe, less error.
